Mastering Precision: Selecting, Measuring, and Understanding Double Capacity Roller Chains at

In the world of heavy machinery, precision in chain selection is pivotal. At we're dedicated to empowering you with the knowledge to choose, measure, and comprehend the unparalleled advantages of double capacity roller chains. Manufactured by Zexus in Japan, one of the worlds leading premium quality roller chain produces.

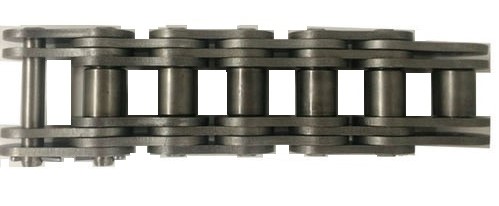

What Are Double Capacity Roller Chains?

Double capacity roller chains are engineered for heavy-duty applications, boasting superior strength and load-bearing capabilities compared to standard chains. They excel in managing heavier loads and ensuring durable, reliable power transmission, making them a preferred choice in various industries.

Understanding Crucial Dimensions:

Double capacity roller chains come with distinct advantages over standard chains, primarily due to their robust build and enhanced capabilities:

  1. Increased Load-Bearing Strength: These chains are designed to handle heavier loads without compromising efficiency or safety.
  2. Enhanced Durability: Their construction ensures durability, making them ideal for continuous operations and harsh environments.
  3. Reliability in High-Torque Transmission: Machinery with powerful drives benefits from the reliable power transmission of double capacity chains.

Measuring Techniques for Precision:

Accurate measurement is critical when opting for a double capacity chain. Here's how to measure them precisely:

  1. Pitch Measurement: Use calipers or a ruler to determine the distance between pins – centre of one pin to centre of next.
  2. Roller Diameter and Width Measurement: Precise measurements of roller dimensions ensure compatibility and superior performance.
  3. Pin Diameter: Use calipers to measure diameter of the pin then refer top manufacturers catalogue specification for correct chain
  4. Plate Thickness – Check plate thickness measurement to determine between American and European standard chain types.

Want a quick cheat on identifying the chain type – grab a rag and degreaser and clean the top plate – 90% of chain manufacturers stamp the chain with the universal part number used by American and European standards.

  • Referencing Manufacturer Guidelines: Following guidelines guarantees accurate measurements for the best fit.
  • Matching Measurements to Specifications: Compare measurements with manufacturer specifications to ensure the selection of the perfect chain.

The Superiority of Double Capacity Chains:

  • Handling Heavier Loads: These chains excel in managing heavy loads, making them ideal for industries requiring substantial power transmission.
  • Durability and Reliability: Their robust construction ensures durability and reliability even in challenging environments and continuous operations.
  • Optimal for High-Torque Transmission: Machinery requiring efficient power transmission benefits significantly from the strength and reliability of double capacity chains.
