RM25 Rigid Coupling F & H 2517

  • In Stock
  • SKU: RM25

RM25 Rigid Coupling F & H 2517

GB RM Rigid couplings are used to rigidly connect two shafts. Rigid couplings are often used to facilitate
ease-of-maintenance or simply to aid machine assembly. Taper Fit bushes provide a secure fit on the driving and driven shafts, ensuring installation and removal is simple.
Selection Procedure
1. Select a size of RM coupling to fit the larger of the driving or driven shafts.
2. For severe applications, select the next size up RM coupling.
NOTE: HF or FF assemblies can be used on horizontal shafts; only FF assemblies are to be used on vertical shafts.

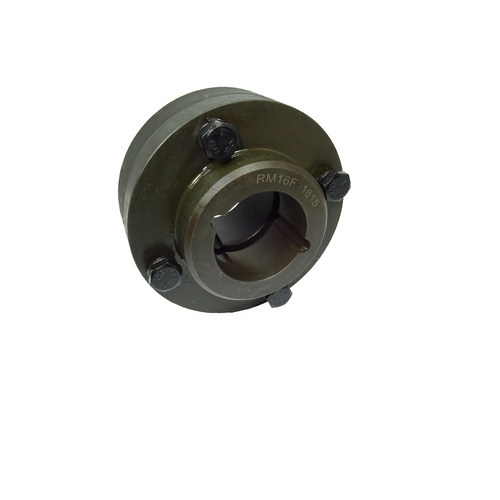

Photo shown is for RM16FF only and is generic for full range; refer to catalogue specifications for more detailed information on specific coupling model.

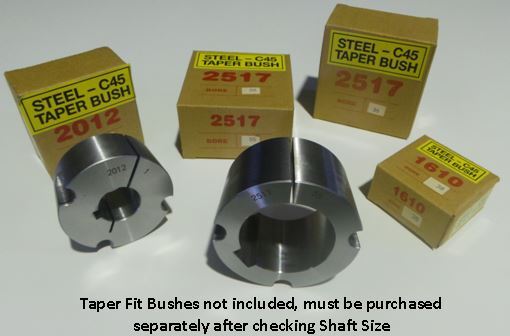

Taper Fit bushes are required to make up a complete coupling assembly ready for instantiation between shafts.   If required these need to be ordered in addition to the coupling assembly by confirming shaft size of connected equipment.

(RM25)

SKU RM25
Brand GB
Unit Of Measure 1

Be The First To Review This Product!

Help other GB Power Transmission users shop smarter by writing reviews for products you have purchased.

Write a product review

RM25 Rigid Coupling F & H 2517

GB RM Rigid couplings are used to rigidly connect two shafts. Rigid couplings are often used to facilitate
ease-of-maintenance or simply to aid machine assembly. Taper Fit bushes provide a secure fit on the driving and driven shafts, ensuring installation and removal is simple.
Selection Procedure
1. Select a size of RM coupling to fit the larger of the driving or driven shafts.
2. For severe applications, select the next size up RM coupling.
NOTE: HF or FF assemblies can be used on horizontal shafts; only FF assemblies are to be used on vertical shafts.

Photo shown is for RM16FF only and is generic for full range; refer to catalogue specifications for more detailed information on specific coupling model.

Taper Fit bushes are required to make up a complete coupling assembly ready for instantiation between shafts.   If required these need to be ordered in addition to the coupling assembly by confirming shaft size of connected equipment.

(RM25)

SKU RM25
Brand GB
Unit Of Measure 1

Be The First To Review This Product!

Help other GB Power Transmission users shop smarter by writing reviews for products you have purchased.

Write a product review
